Sta-Rite® J/JB Series General Purpose Medium Head Centrifugal Pump 1.5 HP

Product #:STA-10-1117

Mfg. Part #:JMF3-40

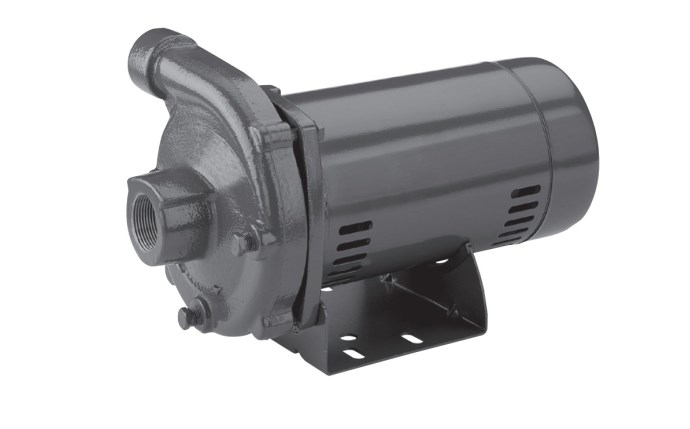

Pentair Sta-Rite® JMF3-40 J/JB Series 1.5 HP 3 Phase General Purpose Medium Head Centrifugal Pump with Noryl® Impeller

Pentair

Sta-Rite® J/JB Series General Purpose Medium Head Centrifugal Pump 1.5 HP

Product #:STA-10-1117

Mfg. Part #:JMF3-40

EA

Description

J/JB Series and other Sta-Rite centrifugal pumps can be ordered with T.E.F.C. motors, and with other design characteristics. J Series with Noryl¨ impellers is abrasion-resistant for normal applications with working temperatures to 140 degrees Fahrenheit. The JB series includes a silicon bronze impeller and viton seal for higher heat capacities.

Documents

Feature Bullets

  • Easy Serviceability: all models feature a replaceable wear ring, and a back pull-out design.
  • J Series - Noryl Impellers: abrasion resistant for normal applications and working temperatures to 140 F.
  • Volute and Seal Plate: close-grained cast iron.

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • ApplicationPool
    • ChannelConstruction Channel
    • ColorDark Gray
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight40 pound
    • Horsepower1.5 horse power
    • Master Carton Quantity0
    • MaterialCast Iron
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • PhaseThree
    • Warranty - General1 years
    • UPC Code022315111882

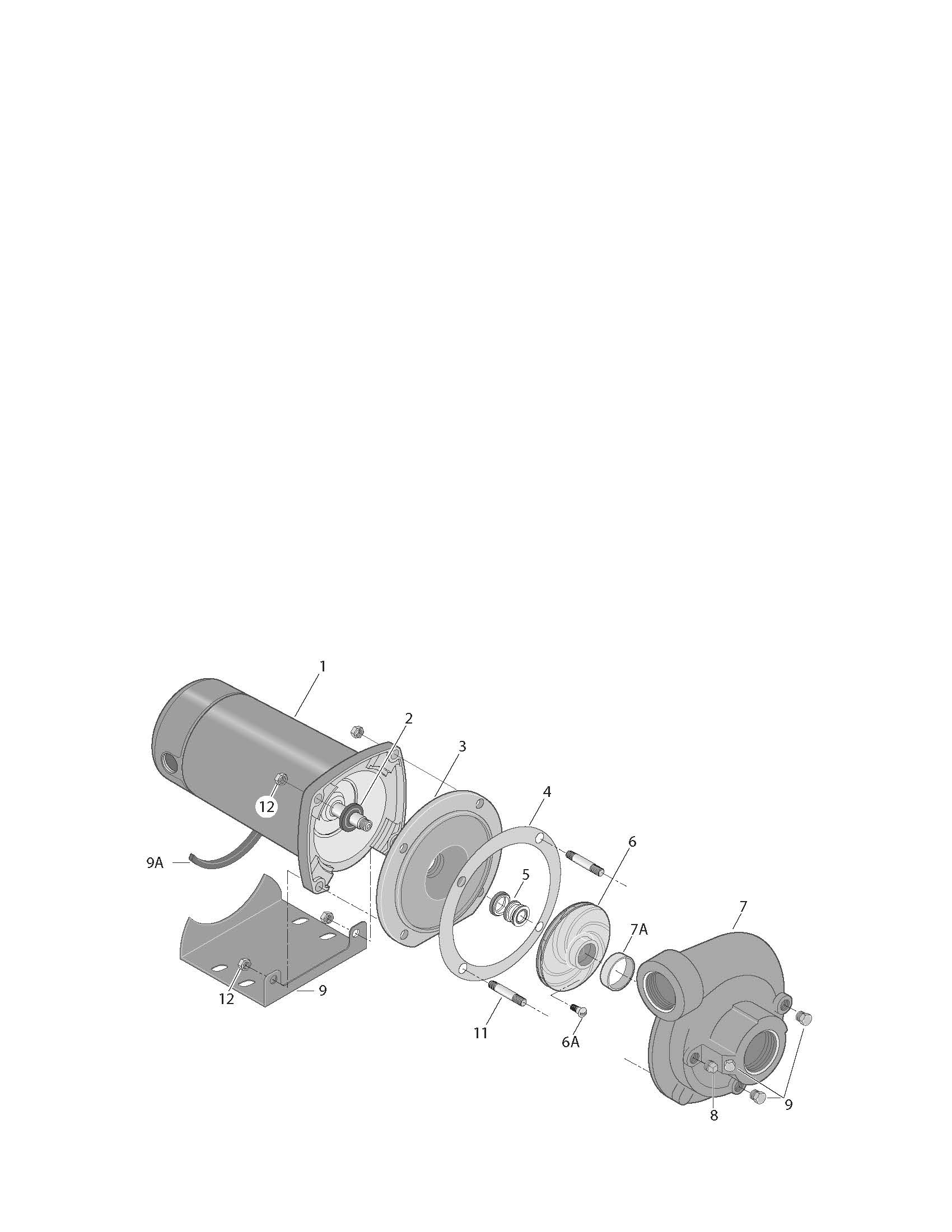

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    AP100FL-T
    Motor
    Product #:
    Mfg #: AP100FL-T
    Notes:
    230/460v, 3ph
    2
    2
    17351-0009
    STA-101-3727
    Water Slinger
    Product #: STA-101-3727
    Mfg #: 17351-0009
    3
    3
    C3-52
    STA-101-1295
    Seal Plate
    Product #: STA-101-1295
    Mfg #: C3-52
    4
    4
    C20-21N
    STA-601-5142
    Sta-Rite Gasket
    Product #: STA-601-5142
    Mfg #: C20-21N
    5
    5
    U109-6B
    STA-101-7142
    Buna N Seal Shaft 5/8"
    Product #: STA-101-7142
    Mfg #: U109-6B
    6
    6
    C105-114PNFA
    Impeller
    Product #:
    Mfg #: C105-114PNFA
    Notes:
    Noryl, 3ph
    6
    6
    C105-79BA
    STA-101-6616
    Impeller
    Product #: STA-101-6616
    Mfg #: C105-79BA
    Notes:
    Bronze, 3ph
    6A
    6A
    C30-14SS
    STA-101-0580
    Impeller Screw .25"-20 x 1"
    Product #: STA-101-0580
    Mfg #: C30-14SS
    Notes:
    3ph only
    7
    7
    C101-123
    Volute Assembly
    Product #:
    Mfg #: C101-123
    Notes:
    with Wear Ring
    7A
    7A
    C23-19
    STA-101-1224
    Wear Ring
    Product #: STA-101-1224
    Mfg #: C23-19
    8
    8
    U78-57DT
    STA-101-4846
    Pipe Plug
    Product #: STA-101-4846
    Mfg #: U78-57DT
    Notes:
    1/4� NPT Sq. Hd
    8
    8
    U78-941ZPV
    STA-101-0530
    Pipe Plug
    Product #: STA-101-0530
    Mfg #: U78-941ZPV
    Notes:
    1/4� NPT Hex Hd (3)
    9
    9
    J104-9A
    Base
    Product #:
    Mfg #: J104-9A
    9A
    9A
    C35-5S
    Motor Pad
    Product #:
    Mfg #: C35-5S
    11
    11
    U30-35SS
    STA-101-0605
    Stud
    Product #: STA-101-0605
    Mfg #: U30-35SS
    Notes:
    3/8 - 16 x 1-13/16�
