National Diversified Sales

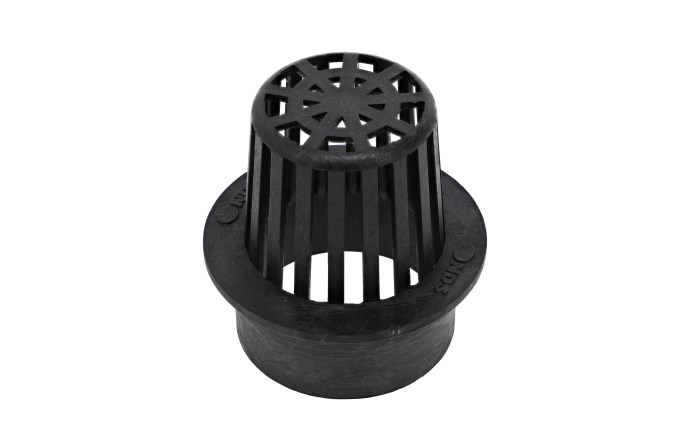

3" Black Plastic Atrium Grate, Connects to 3" Drain Pipes and Fittings

Product #:NDS-58-1155

Mfg. Part #:74


NDS 74 3" Black Plastic Atrium Grate, Connects to 3" Drain Pipes and Fittings

National Diversified Sales

3" Black Plastic Atrium Grate, Connects to 3" Drain Pipes and Fittings

Product #:NDS-58-1155

Mfg. Part #:74

Description

NDS 74 3" Black Plastic Atrium Grate, Connects to 3" Drain Pipes and Fittings as you drain away light flows of stormwater from small mulched landscape beds, natural areas, and window wells. The domed design rises above the surface of the ground to block leaves, mulch, and other debris near the base of the grate while allowing stormwater to flow through the top. The dome grate has an open surface area of 9.4 sq. in. and flow rate of 29 GPM. The 3 in. Atrium Grate fits 3 in. sewer and drain pipe & fittings, 3 in. single-wall corrugated pipe, and 3 in. triple-wall pipe for a soil-tight fit. Made of high-density polyethylene (HDPE) treated with UV inhibitors. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it.

Documents

No documents available

Feature Bullets

  • Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
  • Ideal for draining light water flows from small mulched landscape beds, natural areas, and window wells
  • Grate is 3-11/16 in. high; top is 2-1/4 in. in diameter; grate openings are ¼ in. wide
  • 3 in. Atrium Drain Grates are available in a variety of colors
  • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • Shipping Dimensions3.5 x 3.5 x 4 inch
    • ColorBlack
    • Cover Open Area9.4 square inch
    • Each Product Weight0.15 pound
    • Flow Rate29 gal/min
    • Grate ColorBlack
    • Grate ShapeRound
    • Grate Size3 inch
    • Master Carton Quantity20
    • MaterialPolyethylene (plastic)
    • Minimum Sell Quantity1
    • Pallet Quantity1540
    • Pipe Diameter3 inch
    • Product Height3 inch
    • Product Width3 inch
    • UPC Code052063300740
