Waterway

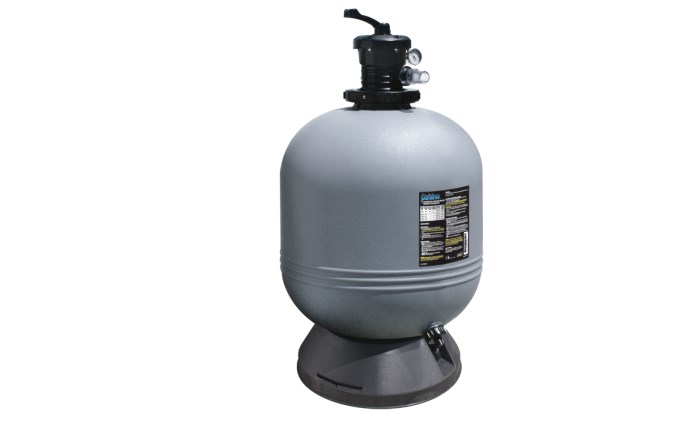

22" Carefree™ Top Mount Sand Filter with Modular Base
Product #:WWP-05-3134
Mfg. Part #:FS022257
Waterway FS022257 22" Carefree™ Top Mount Sand Filter with Modular Base
Waterway
22" Carefree™ Top Mount Sand Filter with Modular Base
Product #:WWP-05-3134
Mfg. Part #:FS022257
EA
Description
Carefree top-mount sand filters are designed for extra sand holding capacity. Made of corrosion proof polymeric thermoplastic, the Carefree sand filter offers the ideal combination of high performance and excellent water clarity. This filter is an excellent choice for above ground or in-ground pools.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationAbove Ground, Inground, Pool
- Shipping Dimensions22.88 x 22.88 x 35 inch
- ChannelNone
- ColorGray
- Commercial, Residential, or ProfessionalCommercial, Residential
- Design Flow Rate55 gal/min
- Each Product Weight53 pound
- Filtration Area2.6 square feet
- FinishStandard
- Minimum Sell Quantity1
- Tank ColorGray
- Tank Diameter22 inch
- Turnover 10hrs33 gallon
- Turnover 6hrs19.8 gallon
- Turnover 8hrs26.4 gallon
- Warranty - General1 years
- Footprint22
- UPC Code806105278524
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
425-1928
WWP-051-1928
Product #: WWP-051-1928
Mfg #: 425-1928
2
3
3
830-3000
WWP-60-3000
0-60 PSI Gauge
Product #: WWP-60-3000
Mfg #: 830-3000
4
4
WVS003
WWP-06-408
Product #: WWP-06-408
Mfg #: WVS003
5
5
505-1970
WWP-051-0222
Product #: WWP-051-0222
Mfg #: 505-1970
6
6
718-1960
Split Nut, Sand Filter
Product #:
Mfg #: 718-1960
7
7
819-0015
Screw, 1/4" - 20 PPH x 1 1/2"
Product #:
Mfg #: 819-0015
8
8
820-0013
Hex Nut, Serrated 1/4"" - 20"
Product #:
Mfg #: 820-0013
9
9
805-0435
WWP-051-0435
Product #: WWP-051-0435
Mfg #: 805-0435
9
9
9
9
33-489
PRE-101-6154
33-489 ORING FOR LID 6
Product #: PRE-101-6154
Mfg #: 33-489
10
10
502-2011
Sand Fill Guide
Product #:
Mfg #: 502-2011
11
11
505-1960
Threaded Sleeve for Split Nut
Product #:
Mfg #: 505-1960
12
12
505-2140
16" Lateral and Manifold Assembly
Product #:
Mfg #: 505-2140
Wholegoods
There are no wholegoods available.
