19" Carefree™ Top Mount Sand Filter with Modular Base

Product #:WWP-05-3133

Mfg. Part #:FS019227

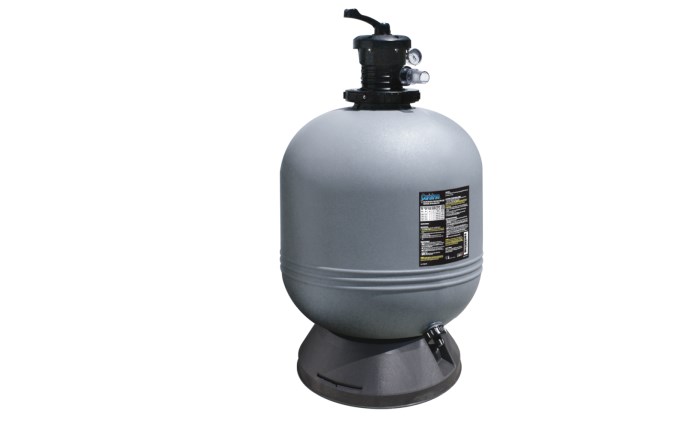

Waterway FS019227 19" Carefree™ Top Mount Sand Filter with Modular Base

Waterway

19" Carefree™ Top Mount Sand Filter with Modular Base

Product #:WWP-05-3133

Mfg. Part #:FS019227

EA

Description

Carefree top-mount sand filters are designed for extra sand holding capacity. Made of corrosion proof polymeric thermoplastic, the Carefree sand filter offers the ideal combination of high performance and excellent water clarity. This filter is an excellent choice for above ground or in-ground pools.

Documents

No documents available

Feature Bullets

  • Large filter with extra sand-holding capacity
  • Durable roto-molded oval tank body distributes pressure evenly, resulting in greater strength and longer life of the filter
  • One-piece corrosion proof body
  • High Flow internal diffuser for even water distribution
  • 7- function Top-Mount - 1 1/2" or 2" - FPT Multi-Port Valve with Split-Nut Lock Union (WVS003)
  • 1 1/2" drain port
  • Mounting base included
  • 45 GPM

    • Branch Availability

    content loaded

    Specifications

    • BrandWaterway
    • ApplicationAbove Ground, Inground, Pool
    • Shipping Dimensions22.5 x 22.88 x 30.5 inch
    • ChannelNone
    • ColorGray
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Design Flow Rate45 gal/min
    • Each Product Weight43.1 pound
    • Filtration Area2 square feet
    • FinishStandard
    • Minimum Sell Quantity1
    • Tank ColorGray
    • Tank Diameter19 inch
    • Turnover 10hrs27 gallon
    • Turnover 6hrs16.2 gallon
    • Turnover 8hrs21.6 gallon
    • Warranty - General1 years
    • Footprint21
    • UPC Code806105278531

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

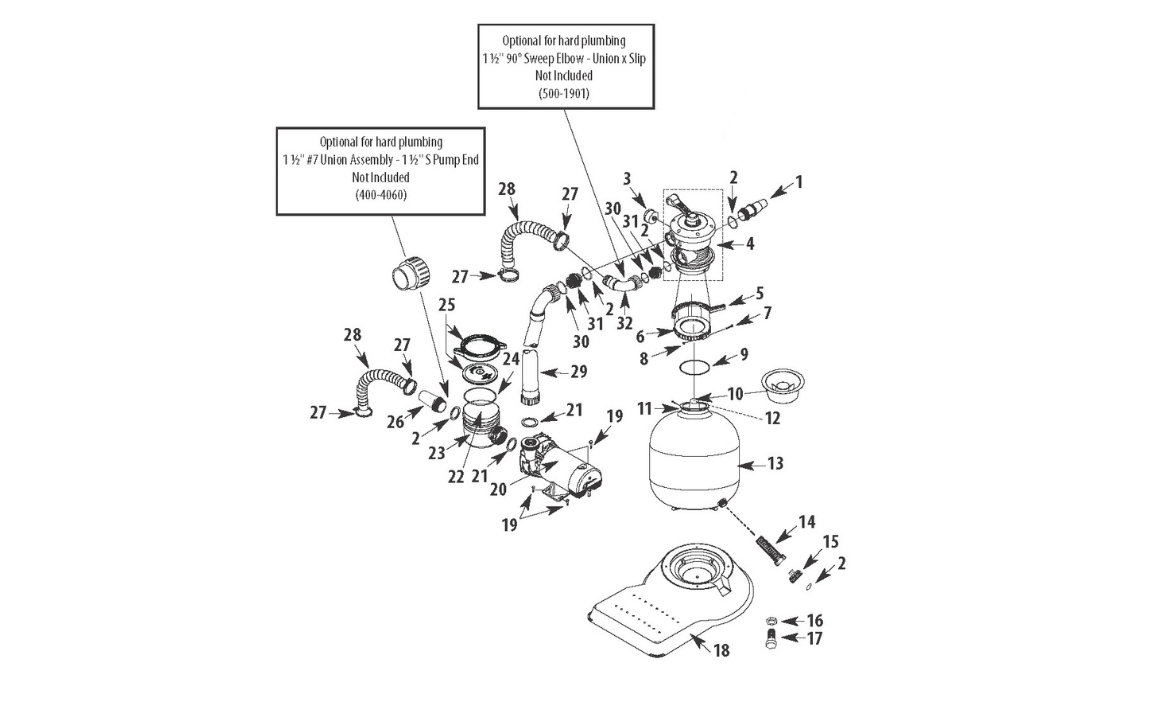

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    425-1928
    WWP-051-1928
    Waste Outlet Adapter Fitting for Carefree ClearWater & TWM Sand Filters
    Product #: WWP-051-1928
    Mfg #: 425-1928
    2
    2
    805-0224
    WWP-851-8098
    1.5" Heater Tailpiece O-Ring
    Product #: WWP-851-8098
    Mfg #: 805-0224
    3
    3
    830-3000
    WWP-60-3000
    0-60 PSI Gauge
    Product #: WWP-60-3000
    Mfg #: 830-3000
    4
    4
    WVS003
    WWP-06-408
    1 1⁄2" Top-Mount 7-Function Sand Filter Valve, Split-Nut Style
    Product #: WWP-06-408
    Mfg #: WVS003
    5
    5
    505-1970
    WWP-051-0222
    Collar Wrench for Split-Nut Threaded Style
    Product #: WWP-051-0222
    Mfg #: 505-1970
    6
    6
    718-1960
    Split Nut, Sand Filter
    Product #:
    Mfg #: 718-1960
    7
    7
    819-0015
    Screw, 1/4" - 20 PPH x 1 1/2"
    Product #:
    Mfg #: 819-0015
    8
    8
    820-0013
    Hex Nut, Serrated 1/4"" - 20"
    Product #:
    Mfg #: 820-0013
    9
    9
    805-0435
    WWP-051-0435
    Multi-Port Valve O-Ring for Carefree & ClearWater Sand Filters #435
    Product #: WWP-051-0435
    Mfg #: 805-0435
    9
    9
    O-161-9
    ALA-601-5910
    O-Ring American 392014/Purex P24050
    Product #: ALA-601-5910
    Mfg #: O-161-9
    9
    9
    071423Z
    PUR-101-4891
    O-ring for C Series® Model C-70 Pumps
    Product #: PUR-101-4891
    Mfg #: 071423Z
    9
    9
    33-489
    PRE-101-6154
    33-489 ORING FOR LID 6
    Product #: PRE-101-6154
    Mfg #: 33-489
    10
    10
    502-2011
    Sand Fill Guide
    Product #:
    Mfg #: 502-2011
    11
    11
    505-1960
    Threaded Sleeve for Split Nut
    Product #:
    Mfg #: 505-1960
    12
    12
    505-2140
    16" Lateral and Manifold Assembly
    Product #:
    Mfg #: 505-2140
