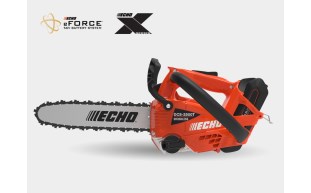

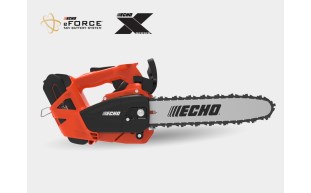

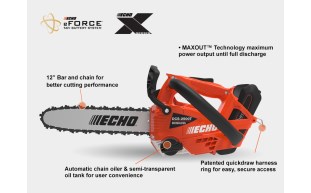

Echo® eForce® DCS-2500T-12BT Top Handle Chainsaw Unit Only 56V
EA
Description
What do the pros need from a battery-powered chainsaw? ECHO asked, then designed the DCS-2500T to meet their demanding standards. On the strength of the ECHO eFORCE® 56V battery system, this lightweight beast is perfect for high-climbing professional arborists.
Documents
Branch Availability
content loaded
Specifications
- BrandEcho
- ApplicationLandscaping
- Shipping Dimensions13.5 x 12.5 x 9.13 inch
- Each Product Weight7.6 pound
- Minimum Sell Quantity1
- ColorOrange, Black
- Commercial, Residential, or ProfessionalProfessional, Residential
- UPC Code743184023709
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

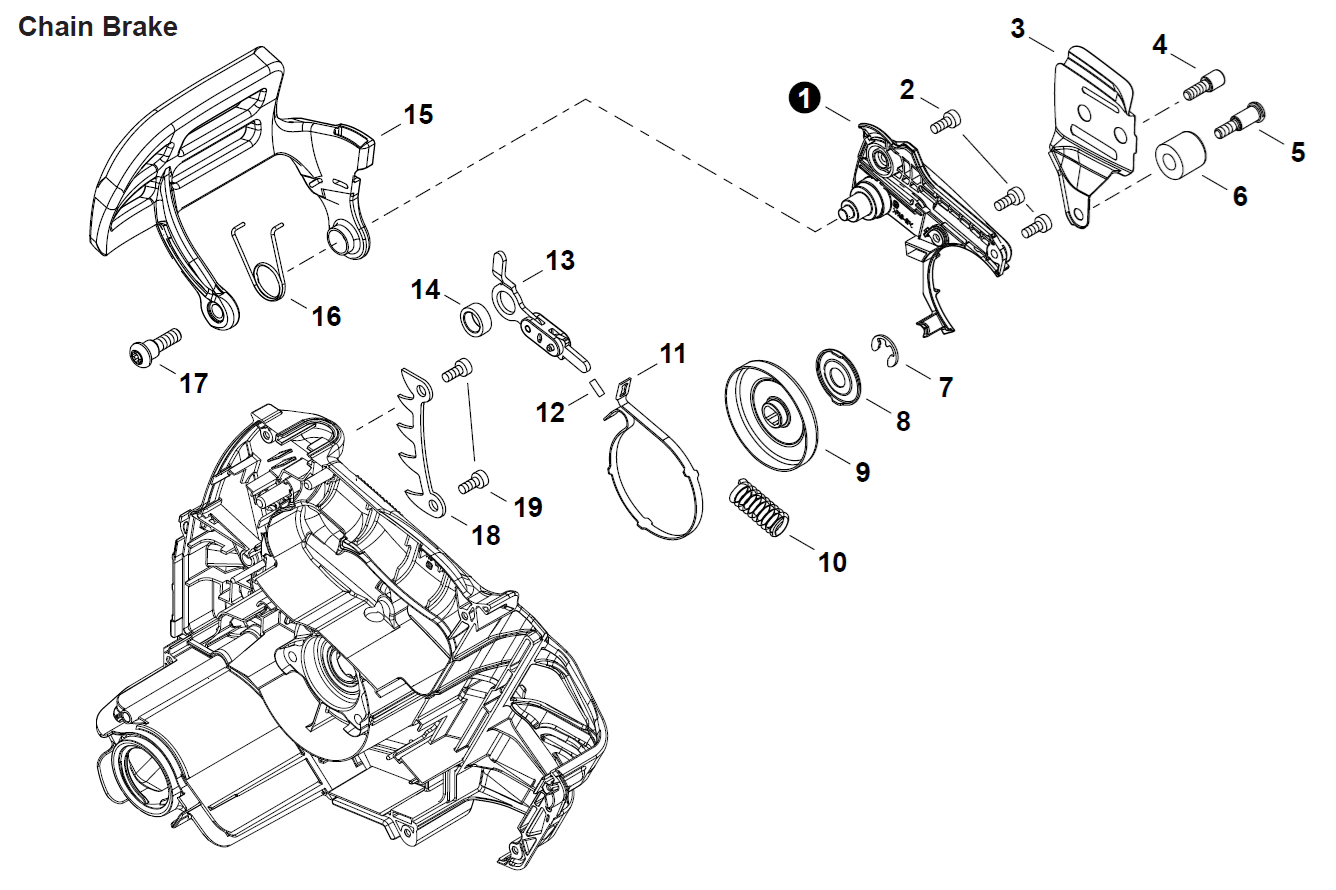

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
C345000730
COVER, BRAKE
Product #:
Mfg #: C345000730
Notes:
Chain Brake2
2
V804000160
BOLT, TORX 4 x 12
Product #:
Mfg #: V804000160
Notes:
Chain Brake3
3
C305000511
PLATE, GUIDE - INNER
Product #:
Mfg #: C305000511
Notes:
Chain Brake4
4
V203002280
BOLT 5
Product #:
Mfg #: V203002280
Notes:
Chain Brake5
5
V203002260
BOLT 5x12
Product #:
Mfg #: V203002260
Notes:
Chain Brake6
6
C310000140
CATCHER, CHAIN
Product #:
Mfg #: C310000140
Notes:
Chain Brake7
8
8
V307000620
WASHER 10
Product #:
Mfg #: V307000620
Notes:
Chain Brake9
9
A556001920
DRUM, CLUTCH 3/8"
Product #:
Mfg #: A556001920
Notes:
Chain Brake10
10
V450002400
SPRING, COMPRESSION
Product #:
Mfg #: V450002400
Notes:
Chain Brake11
11
C328000361
BAND, BRAKE
Product #:
Mfg #: C328000361
Notes:
Chain Brake12
13
13
C334000340
EPE-591-4167
Product #: EPE-591-4167
Mfg #: C334000340
Notes:
Chain Brake14
15
15
C320000610
LEVER, BRAKE
Product #:
Mfg #: C320000610
Notes:
Chain BrakeWholegoods
There are no wholegoods available.
