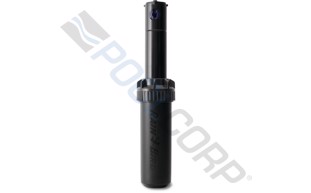

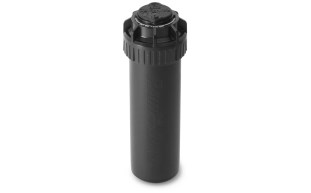

4" 5000 Series Part-Circle Pattern Pop-Up Rotor- Stainless Steel Regulation

Product #:RBD-58-1716

Mfg. Part #:Y65650


Rain Bird Y65650, 5004+Pcsamr, 4" 5000 Series Part-Circle Pattern Pop-Up Rotor- Prs Pressure Regulation

Rain Bird

4" 5000 Series Part-Circle Pattern Pop-Up Rotor- Stainless Steel Regulation

Product #:RBD-58-1716

Mfg. Part #:Y65650

EA

Description

Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Rotors are ideal for medium to large-size lawns and evenly distribute water from 25 to 50 feet.

Documents

No documents available

Feature Bullets

  • 4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with PRS Pressure Regulation and SAM Check Valve
  • Flow Shut-Off
  • Faster maintenance with a new self-cleaning arc adjustment screw
  • Heavy-duty cover assembly for extra durability
  • Rain Curtain™ Nozzles
  • Slip clutch mechanism for quick adjustment on installation
  • Heavy-duty retract spring assures positive pop-down
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • 40 - 360° arc rotation and reversing full circle rotation in one
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles
  • Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Reinforced flow path for additional side load strength
  • Additional O-rings and seals for extra protection in "gritty" water
  • Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance
  • Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage

    • Branch Availability

    content loaded

    Specifications

    • BrandRain Bird
    • ApplicationGarden, Landscaping, Lawn, Outdoor
    • Shipping Dimensions0.74 x 0.47 x 0.42 inch
    • Body ColorBlack
    • ChannelConstruction Channel
    • ColorBlack, Blue
    • Commercial, Residential, or ProfessionalCommercial
    • Coverage Area Max50 square feet
    • Dripper Flow Rate36.6 l/min
    • Each Product Weight0.7075 pound
    • Gallons Per Minute Max9.63
    • Includes4 in Pop up, Gear Drive, PRS Pressure Regulating, Flow Shut-Off, Rain Curtain Nozzles
    • Master Carton Quantity20
    • Minimum Sell Quantity1
    • Pallet Quantity800
    • Pop Up Height4 inch
    • Precipitation Rate1.01 in/hr
    • Pressure Rating Max65 pounds per square inch
    • Pressure Rating Min25 pounds per square inch
    • Rotation Maximum (deg)360
    • Spray PatternOne-Third Circle
    • Warranty - General5 years
    • UPC Code753810021757
