National Diversified Sales

Green Plastic Spring Loaded Pop-Up Drainage Emitter for 3" & 4" Drain Fittings

Product #:NDS-58-1142

Mfg. Part #:420


NDS 420 Green Plastic Spring Loaded Pop-Up Drainage Emitter for 3" & 4" Drain Fittings

National Diversified Sales

Green Plastic Spring Loaded Pop-Up Drainage Emitter for 3" & 4" Drain Fittings

Product #:NDS-58-1142

Mfg. Part #:420

Description

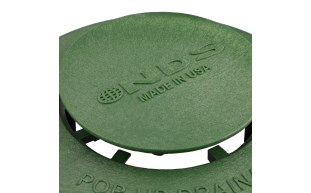

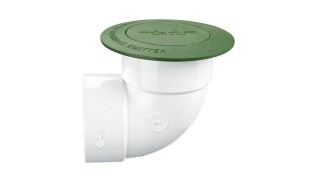

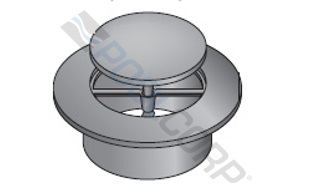

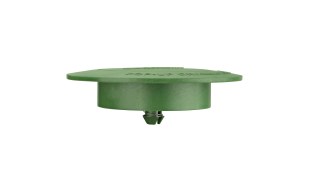

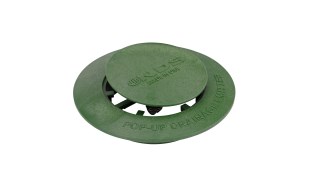

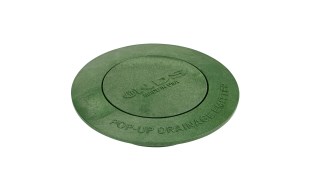

NDS 420 Green Plastic Spring Loaded Pop-Up Drainage Emitter for 3" & 4" Drain Fittings discharges stormwater captured upstream by catch basins, channel drains, and other drainage solutions and carried downstream with connected drain pipe. The spring-loaded emitter cap pops up to 1 in. high to release water when pressure builds, disperses water at up to 56 GPM, then automatically retracts once flow diminishes. Cap stays closed when not in use to prevent debris and rodents from getting into the drainage system. The Pop-Up Emitter connects to 3 in. & 4 in. sewer and drain fittings which connect to sewer and drain pipe and triple-wall pipe. Cap and cover made of high-density polyethylene (HDPE).

Documents

No documents available

Feature Bullets

  • Provides a downstream point of release for water collected upstream
  • Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas
  • Spring-loaded cap on cover pops up as high as 1 in. once water pressure builds and closes as flow diminishes; when not in use, cap stays closed to keep debris and rodents out of drain
  • Flange design prevents grass from growing over the cover
  • Flat profile design reduces trip hazard posed by open drain; closed position keeps emitter flush to the ground and safe from lawn mower blades
  • Rounded contours on interior edges reduce the potential for clogging and internal ribs provide durability and strength
  • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • Shipping Dimensions40.1 x 8.2 x 9.1 inch
    • ColorGreen
    • Each Product Weight0.275 pound
    • Flow Rate56 gal/min
    • Grate ColorGreen
    • Master Carton Quantity20
    • MaterialPolyethylene (plastic)
    • Minimum Sell Quantity1
    • Pallet Quantity880
    • Pipe Diameter3 inch
    • UPC Code052063404202

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    There are no parts or schematics available.
