National Diversified Sales

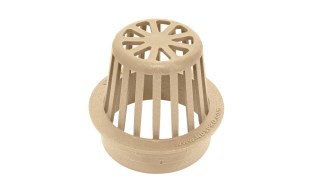

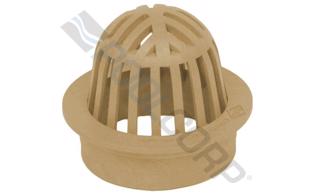

4" Sand Plastic Atrium Grate, Connects to 4" Drain Pipes and Fittings

Product #:NDS-58-1161

Mfg. Part #:78S


NDS 78S 4" Sand Plastic Atrium Grate, Connects to 4" Drain Pipes and Fittings

National Diversified Sales

4" Sand Plastic Atrium Grate, Connects to 4" Drain Pipes and Fittings

Product #:NDS-58-1161

Mfg. Part #:78S

Description

NDS 78S 4" Sand Plastic Atrium Grate, Connects to 4" Drain Pipes and Fittings is designed to get the job done. The domed design rises above the surface of the ground to block debris near the base of the drain grate, while stormwater drains from above. The dome grate has an open surface area of 17.0 sq. in. and flow rate of 52 GPM. Use in mulched landscape beds, natural areas, and window wells to drain moderate flows of excess stormwater. The 4 in. Atrium Grate fits 4 in. sewer and drain pipe & fittings, 4 in. single-wall corrugated pipe, and 4 in. triple-wall pipe for a soil-tight fit. Made of high-density polyethylene (HDPE) treated with UV inhibitors. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it.

Documents

No documents available

Feature Bullets

  • Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
  • Ideal for draining moderate water flows from mulched landscape beds, natural areas, and window wells
  • Grate is 4-7/16 in. high; top is 2-3/4 in. wide in diameter; grate openings are ¼ in. wide
  • 4 in. Atrium Drain Grates are available in a variety of colors and materials
  • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • ColorTan
    • Cover Open Area17 square inch
    • Each Product Weight0.2145 pound
    • Flow Rate52 gal/min
    • Grate ColorTan
    • Grate ShapeRound
    • Grate Size4 inch
    • Master Carton Quantity20
    • MaterialPolyethylene (plastic)
    • Minimum Sell Quantity1
    • Pallet Quantity1040
    • Pipe Diameter4 inch
    • Product Height4 inch
    • Product Width4 inch
    • UPC Code052063410784
