National Diversified Sales

3" Green Plastic Atrium Grate, Connects to 3" Drain Pipes and Fitting

Product #:NDS-58-1152

Mfg. Part #:70


NDS 70 3" Green Plastic Atrium Grate, Connects to 3" Drain Pipes and Fitting

National Diversified Sales

3" Green Plastic Atrium Grate, Connects to 3" Drain Pipes and Fitting

Product #:NDS-58-1152

Mfg. Part #:70

EA

Description

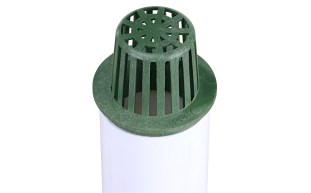

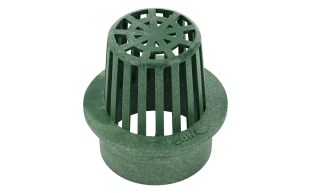

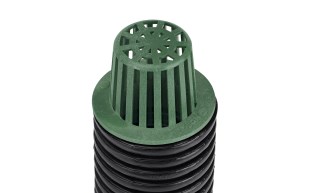

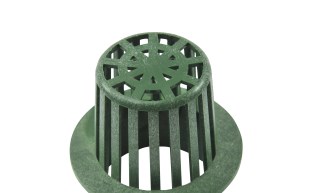

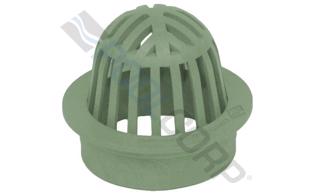

NDS 70 3" Green Plastic Atrium Grate, Connects to 3" Drain Pipes and Fitting as you drain away light flows of stormwater from small mulched landscape beds, natural areas, and window wells. The domed design rises above the surface of the ground to block leaves, mulch, and other debris near the base of the grate while allowing stormwater to flow through the top. The dome grate has an open surface area of 9.4 sq. in. and flow rate of 29 GPM. The 3 in. Atrium Grate fits 3 in. sewer and drain pipe & fittings, 3 in. single-wall corrugated pipe, and 3 in. triple-wall pipe for a soil-tight fit. Made of high-density polyethylene (HDPE) treated with UV inhibitors. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it.

Documents

No documents available

Branch Availability

content loaded

Specifications

  • BrandNational Diversified Sales
  • ApplicationIrrigation
  • Shipping Dimensions4 x 3.5 x 3.5 inch
  • ColorGreen
  • Cover Open Area9.4 square inch
  • Each Product Weight0.15 pound
  • Flow Rate29 gal/min
  • Grate ColorGreen
  • Grate ShapeRound
  • Grate Size3 inch
  • Master Carton Quantity20
  • MaterialPolyethylene (plastic)
  • Minimum Sell Quantity1
  • Pallet Quantity1540
  • Pipe Diameter3 inch
  • Product Height3 inch
  • Product Width3 inch
  • Warranty - AdditionalLimited Lifetime
  • Warranty - General1 years
  • UPC Code052063300702

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Parts & Schematics

There are no parts or schematics available.
