22" SFTM Top Mount Sand Filter with 1.5" Valve

Product #:TLD-05-1001

Mfg. Part #:SFTM22-1.5


Jandy SFTM22-1.5 22" SFTM Top Mount Sand Filter with 1.5" Valve

Jandy

22" SFTM Top Mount Sand Filter with 1.5" Valve

Product #:TLD-05-1001

Mfg. Part #:SFTM22-1.5

EA

Description

Jandy SFTM22-1.5 22" SFTM Top Mount Sand Filter with 1.5" Valve is easy to install, simple to maintain. These top-mount sand filters are designed with features to make installation easy and filter more water, faster.

Documents

Feature Bullets

  • Large 2" valve for increased flow and enhanced filtration (SFTM24-2.0)
  • 7-position multi-port valve can be rotated to quickly adjust filter mode
  • 360 degrees clamp-style valve rotates for easy installation
  • Laterals fold up/down for quick installation and to service (SFTM24-2.0)
  • Blow-molded tank is corrosion and UV-resistant
  • Combination water/sand drain for easy maintenace and winterizing
  • Unions and adapters included - no need to buy additional parts

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationPool
    • Shipping Dimensions23.25 x 23.25 x 38.63 inch
    • Backwash Flow Rate38 gal/min
    • Backwash Min Flow Rate38 gal/min
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight38.838 pound
    • Filtration Area2.6 square feet
    • Maximum Flow Rate50 gal/min
    • Maximum Working Pressure35 pounds per square inch
    • Minimum Sell Quantity1
    • Pallet Quantity2
    • Sand Required250 pound
    • Turnover 8hrs24960 gallon
    • Warranty - General1 years
    • Sand Type Requirements#20 Silica Sand, Size Range 40-55mm
    • UPC Code052337073370

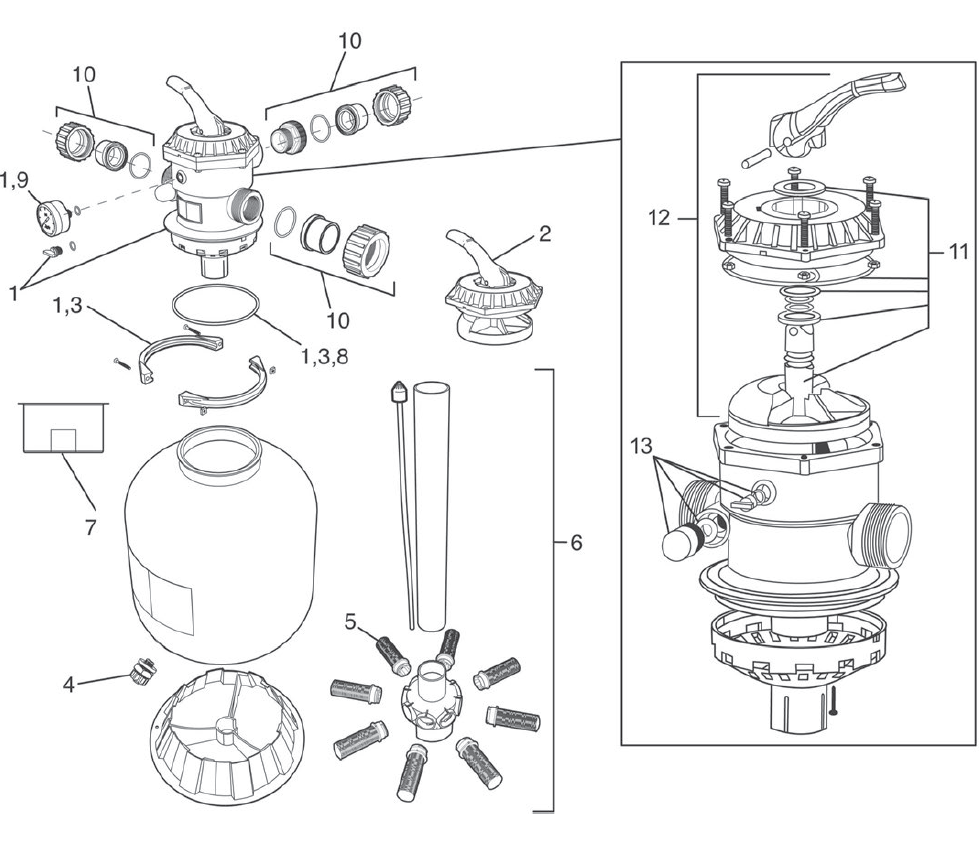

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0744600
    TLD-06-1000
    1/5'' Top Mount Multi-Port Valve
    Product #: TLD-06-1000
    Mfg #: R0744600
    2
    2
    R0744700
    TLD-051-1004
    Top Rotor Assembly
    Product #: TLD-051-1004
    Mfg #: R0744700
    3
    3
    R0745100
    TLD-051-1006
    Filter Flange Clamp Assembly and Hardware
    Product #: TLD-051-1006
    Mfg #: R0745100
    4
    4
    R0745200
    TLD-051-1007
    Drain Cap and O-Ring
    Product #: TLD-051-1007
    Mfg #: R0745200
    5
    5
    R0745300
    TLD-051-1008
    Lateral Full Set
    Product #: TLD-051-1008
    Mfg #: R0745300
    6
    6
    R0745400
    TLD-051-1009
    Lateral and Standpipe Assembly
    Product #: TLD-051-1009
    Mfg #: R0745400
    7
    7
    R0745500
    TLD-051-1010
    Filter Sand Deflector
    Product #: TLD-051-1010
    Mfg #: R0745500
    8
    8
    R0745800
    TLD-051-1012
    Valve Tank O-Ring
    Product #: TLD-051-1012
    Mfg #: R0745800
    9
    9
    R0745000
    TLD-051-1005
    Pressure Gauge Assembly with Ring
    Product #: TLD-051-1005
    Mfg #: R0745000
    10
    10
    R0745600
    TLD-051-1011
    1.5" Complete Unions Kit
    Product #: TLD-051-1011
    Mfg #: R0745600
    11
    11
    R0987400
    TLD-051-5576
    MPV Rebuild Kit
    Product #: TLD-051-5576
    Mfg #: R0987400
    12
    12
    R0987600
    TLD-051-5577
    Top Valve Assembly
    Product #: TLD-051-5577
    Mfg #: R0987600
    13
    13
    R0989300
    TLD-051-5578
    Sight Glass with Plug Kit for Top Mount Sand Filter
    Product #: TLD-051-5578
    Mfg #: R0989300
