Echo® LM-2116SP 21" 163cc Self Propelled Gas Powered Lawn Mower
EA
Description
The ECHO LM-2116SP 163cc, 21" self-propelled lawn mower offers 3-in-1 mulching, bagging, and side discharge. Its Briggs & Stratton ReadyStart® engine ensures easy starts, while the variable speed, ball-bearing wheels, and single-point height adjustment from 1.25 in. - 4.0 in. provide smooth, customizable mowing.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandEcho
- ApplicationLandscaping, Lawn, Outdoor
- Shipping Dimensions42.12 x 22.44 x 17.3 inch
- ChannelMaintenance Channel
- Commercial, Residential, or ProfessionalCommercial, Professional, Residential
- Each Product Weight90.4 pound
- Minimum Sell Quantity1
- Pallet Quantity4
- Warranty - General90 days
- UPC Code743184027547
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

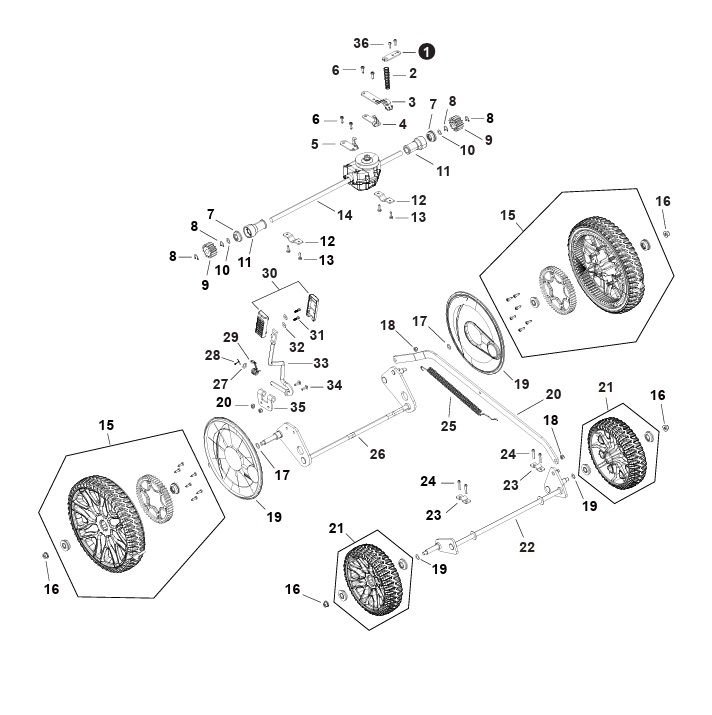

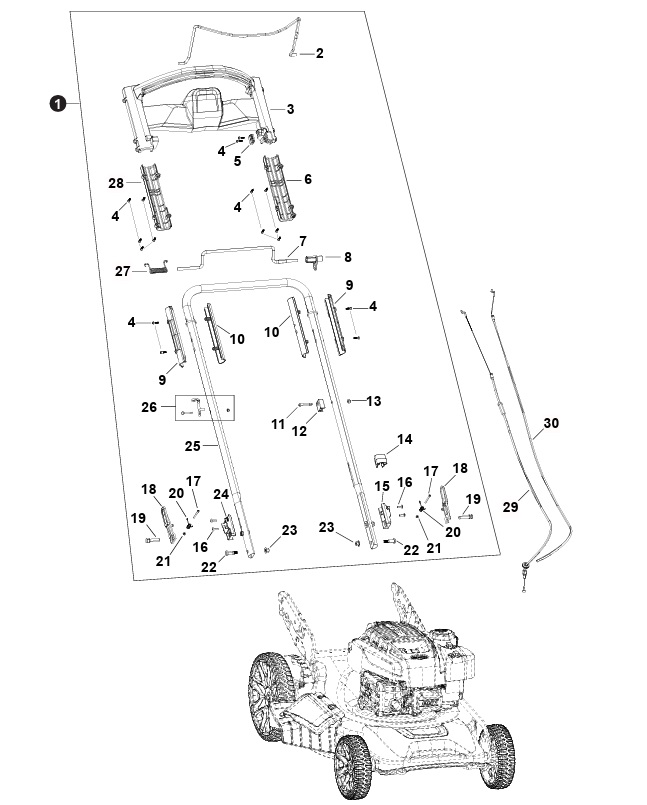

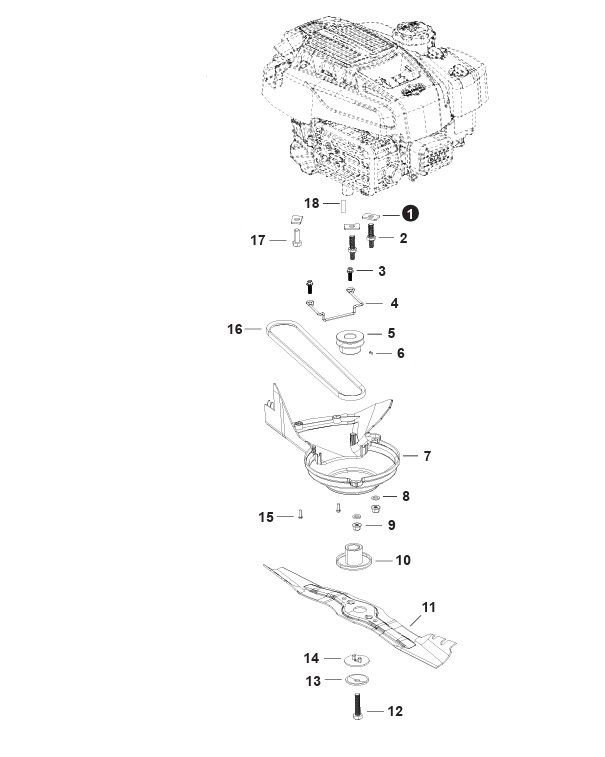

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
YH475000300
SPACER
Product #:
Mfg #: YH475000300
Notes:
Engine and Blade Qty 32
2
YH435000830
BOLT, ENGINE MOUNTING
Product #:
Mfg #: YH435000830
Notes:
Engine and Blade Qty 23
3
YH427000010
SCREW
Product #:
Mfg #: YH427000010
Notes:
Engine and Blade Qty 24
4
YH466000790
GUIDE, BELT
Product #:
Mfg #: YH466000790
Notes:
Engine and Blade Qty 15
5
YH472000170
PULLEY, DRIVE
Product #:
Mfg #: YH472000170
Notes:
Engine and Blade Qty 16
6
YH421000000
SCREW, SET
Product #:
Mfg #: YH421000000
Notes:
Engine and Blade Qty 17
7
YH479003060
GUARD, BELT
Product #:
Mfg #: YH479003060
Notes:
Engine and Blade Qty 18
8
YH451000590
WASHER
Product #:
Mfg #: YH451000590
Notes:
Engine and Blade Qty 216
16
YH450000560
NUT
Product #:
Mfg #: YH450000560
Notes:
Wheels and Drive Qty 410
10
YH456000120
ADAPTOR, BLADE
Product #:
Mfg #: YH456000120
Notes:
Engine and Blade Qty 111
11
99988806003
BLADE
Product #:
Mfg #: 99988806003
Notes:
Engine and Blade Qty 112
12
YH435000800
EPE-591-2918
Product #: EPE-591-2918
Mfg #: YH435000800
Notes:
Engine and Blade Qty 113
13
YH451000580
EPE-591-2919
Product #: EPE-591-2919
Mfg #: YH451000580
Notes:
Engine and Blade Qty 114
14
YH475000390
PLATE, PRESSURE
Product #:
Mfg #: YH475000390
Notes:
Engine and Blade Qty 136
36
YH427000000
SCREW
Product #:
Mfg #: YH427000000
Notes:
Wheels and Drive Qty 2Wholegoods
